HIGH PERFORMANCE MONOCRYSTALLINE PERC MODULE SYM72-6-360M-380M
Five Advantages Of Products
- Industry Leading Lowest Thermal co-efficient of Power, Industry leading 12 years product warranty, Excellent low irradiance performance
- Excellent PID resistance, positive tight power tolerance, dual stage 100% EL inspection warranting defect-free product
- Module imp binning radically reduces string mismatch losses
- warranted raliability and stringent quality assurances well beyond certified requirement
- Certified to withstand severe environmental conditions -Anti-reflective & anti-soiling surface minimise power losses from dirt and dust -Severe salt mist, ammonia & blown sand resistance for seaside, farm and desert environments -Excellent mechanical load 2400Pa & snow load 5400Pa resistance
Product Details
72 CELL MONOCRYSTALLINE MODULE
360-380Wp POWER OUTPUT RANGE
1500VDC MAXIMUM SYSTEM VALTAGE
19.6% MAXIMUM EFFICIENT

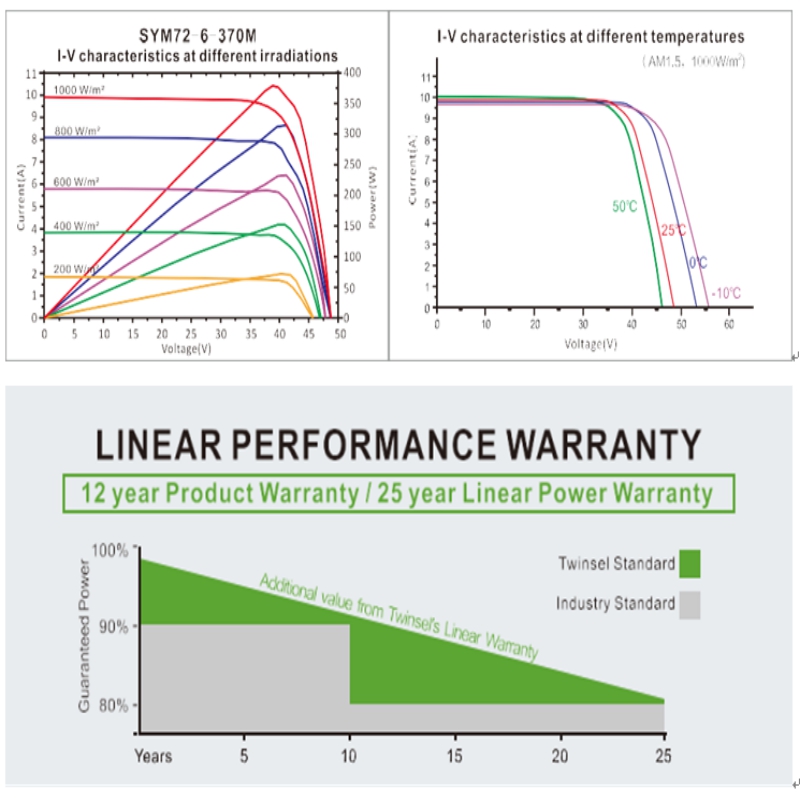

ELECTRICAL DATA ( STC )
Model Number SYM72-6-360M SYM72-6-365M SYM72-6-370M SYM72-6-375M SYM72-6-380M
Rated Power in Watts-Pmax(Wp) 360 365 370 375 380
Open Circuit Voltage-Voc(V) 47.3 47.7 48.15 48.6 48.95
Short Circuit Current-Isc(A) 9.80 9.85 9.90 9.95 10.00
Maximum Power Voltage-Vmpp(V) 38.95 39.25 39.6 39.95 40.25
Maximum Power Current-Impp(A) 9.25 9.3 9.35 9.40 9.45
Module Efficiency (%) 18.6 18.8 19.1 19.3 19.6
STC: Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3.
ELECTRICAL DATA ( NMCT )
Model Number SYM72-6-360M SYM72-6-365M SYM72-6-370M SYM72-6-375M SYM72-6-380M
Maximum Power-Pmax (Wp) 269.3 272.8 276.8 280.7 284.3
Open Circuit Voltage-Voc (V) 43.50 43.90 44.30 44.70 45.00
Short Circuit Current-Isc (A) 8.04 8.08 8.12 8.16 8.20
Maximum Power Voltage-Vmpp (V) 35.70 36.00 36.30 36.60 36.90
Maximum Power Current-Impp (A) 7.55 7.59 7.63 7.67 7.71
NMOT: Irradiance at 800 W/m², Ambient Temperature 20°C, Wind Speed 1 m/s.
MECHANICAL DATA
Solar cells Monocrystalline 156.75×156.75mm, 5BB
Cell configuration 72 cells(6×12)
Module dimensions 1956×992×40mm
Weight 22kg
Superstrate 3.2 mm, High Transmission, Low Iron, Tempered ARC Glass
Substrate White Backsheet
Frame Anodized Aluminium Alloy type 6063T5, Silver Color
J-Box Potted, IP67, 1500VDC, 3 Schottky bypass diodes
Cables 4.0mm² (12AWG), 1200mm length
Connector IP67, PV-SY02
TEMPERATURE & M AXIMUM RATINGS
Nominal Operating Cell Temperature (NOCT) 45°C±2°C
Temperature Coefficient of Voc -0.29%/°C
Temperature Coefficient of Isc 0.05%/°C
Temperature Coefficient of Pmax -0.39%/°C
Operational Temperature -40~+85°C
Maximum System Voltage 1500VDC
Max Series Fuse Rating 20A
Limiting Reverse Current 20A
ACKAGING CONFIGURATION
40ft 20ft
Number of modules per container 648 270
Number of modules per pallet 27 27
Number of pallets per container 24 10
Packaging box dimensions (LxWxH) in mm 1980*1130*1130 1980*1130*1130
Box gross weight[kg] 640 640
CAUTION: READ SAFETY AND INSTALLATION INSTRUCTIONS BEFORE USING THE PRODUCT.
